Product description
Product Benefit: LiNbO3 coated Single Crystal NMC 631 Cathode Powder provides superior high rate capability of cathode when being used with solid state electrolyte materials. The coating of LiNbO3 on Single Crystal NMC 631 cathode not only supplied a protective surface coating but also optimized the electrochemical behavior of single crystal NMC 631 cathode material.
Product Number (SKU#): PO0226
Package Size: 10g, 100g
Particle Size:
- D10: ≥1.5 µm
- D50: 3.3~4.5 µm
- D90: 5.5~9.5 µm
Supplier: Ampcera Inc. (Ampcera Inside™)
Specifications (Custom made cathode materials with LiNbO3 coating can be provided by Ampcera Inc. upon request. Please contact us for a quote.)
LiNbO3 Coating: 1.5 wt% of NMC 631
Appearance: Ash black color powder
Molecular Formula: LiNi0.6Mn0.3Co0.1O2 (Ni:Mn:Co = 6:3:1)
Material Type: Single crystal NMC 631 powder
Chemical Name or Material: Lithium Nickel Manganese Cobalt Oxide

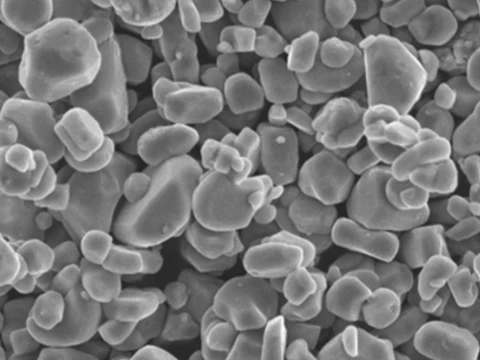

Figure is for reference only.
| Parameter | Specifications |
| Ni+Mn+Co (wt%) | 57.3~62.3 |
| Li (wt%) | 7.0~7.6 |
| Ni (mol%) | 59.0±1.0 |
| Mn (mol%) | 30.0±1.0 |
| Co (mol%) | 10.0±1.0 |
| Ca (wt%) | ≤0.0100 |
| Cu (wt%) | ≤0.0020 |
| Fe (wt%) | ≤0.0050 |
| Na (wt%) | ≤0.0300 |
