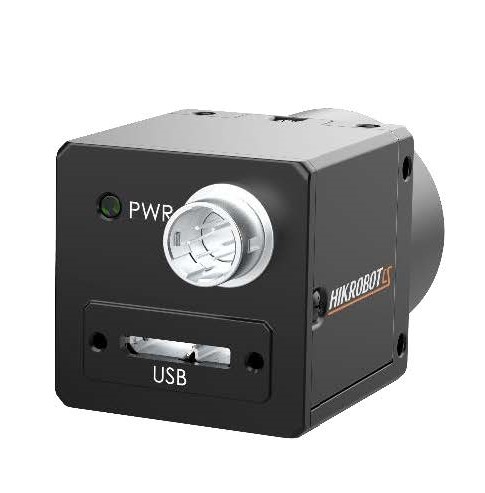

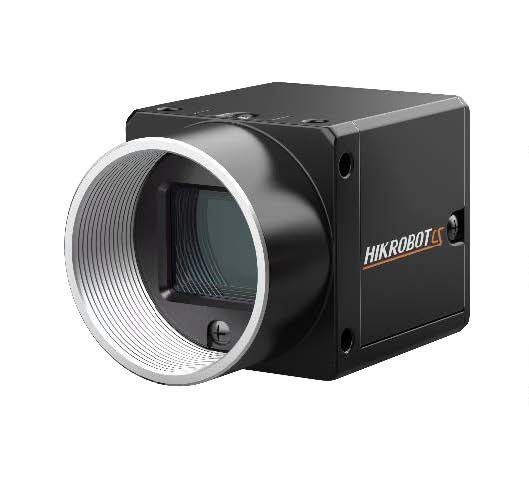

Product description
Introduction
MV-CS040-A0UM/UC camera adopts CMOS sensor to provide high-quality images. It uses USB 3.0 interface to transmit non-compressed images in real time, and its max. frame rate can reach
90.1 fps in full resolution.
Key Feature
- Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range and high quality images.
- Resolution of 2048 × 2048, pixel size of 5.5 μm × 5.5 μm.
- Supports hardware trigger, software trigger, free run.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third party software based on the protocol and standard.

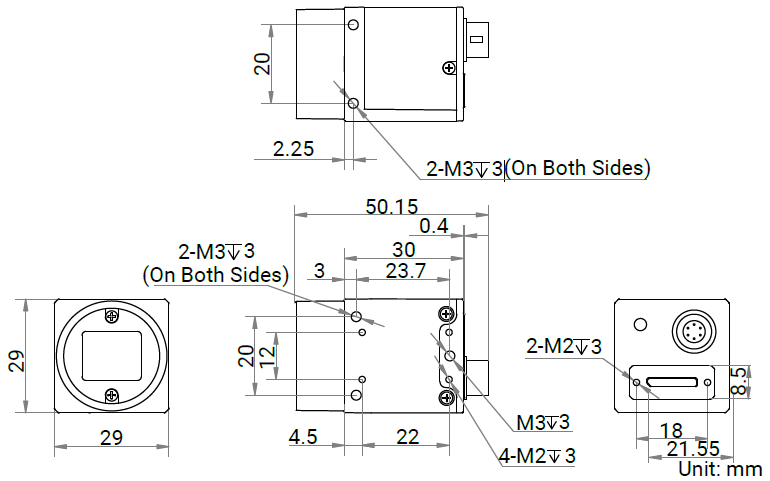

Dimension
Available Model
- Mono camera: MV-CS040-A0UM
- Color camera: MV-CS040-A0UC
Applicable Industry
Electronics and semiconductor, factory automation, medicine package, etc.

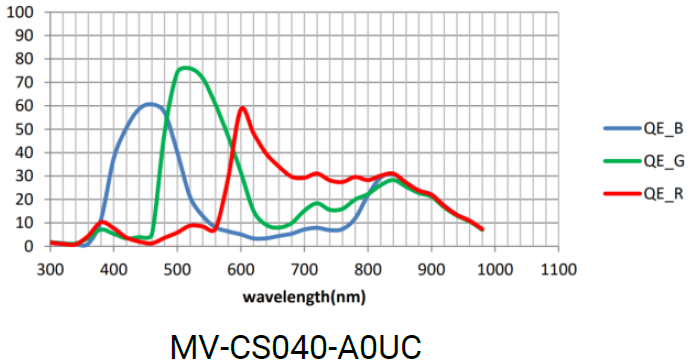

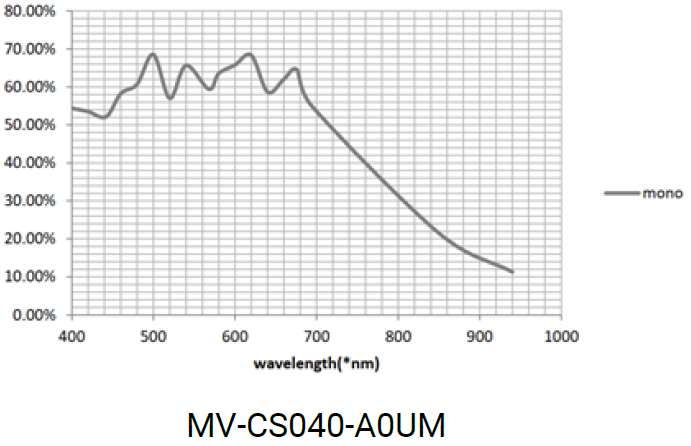

Sensor Quantum Efficiency
| Specification | MV-CS040-A0UM | MV-CS040-A0UC |
|---|---|---|
| Performance | ||
| Sensor type | CMOS, global shutter | CMOS, global shutter |
| Pixel size | 5.5 μm × 5.5 μm | 5.5 μm × 5.5 μm |
| Sensor size | 1″ | 1″ |
| Resolution | 2048 × 2048 | 2048 × 2048 |
| Max. frame rate | 90.1 fps @ 2048 × 2048 Mono 8 | 90.1 fps @ 2048 × 2048 Bayer GB 8 |
| Dynamic range | 59.7 dB | 59.7 dB |
| SNR | 39.6 dB | 39.6 dB |
| Gain | 0 dB to 12 dB | 0 dB to 12 dB |
| Exposure time | 30 μs to 10 sec | 30 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono | Color |
| Pixel format | Mono 8/10/12, Mono 8/10/10Packed/12/12Packed, Mono 8/10/10Packed/12/12Packed, Mono 12/12Packed, Mono 12/12Packed, Mono 12/12, Mono 12/12 | Mono 8/10/12, Mono 8/10/10Packed/12/12Packed, Mono 8/10/10Packed/12/12Packed, Mono 12/12Packed, Mono 12/12Packed, Mono 12/12, Mono 12/12 |
| Dinning | ||
| Decimation | Supports 1 × 1, 2 × 2 | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output | Supports horizontal and vertical reverse image output |
| Electrical features | ||
| Data interface | USB 3.0, compatible with USB 2.0 | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB supply | 9 VDC to 24 VDC, supports USB supply |
| Power consumption | Typ. 2.4 W @ 5 VDC (USB 3.0 provides power supply) | Typ. 2.4 W @ 5 VDC (USB 3.1 provides power supply) |
| Mechanical | ||
| Lens mount | C-mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm | 29 mm × 29 mm × 30 mm |
| Weight | Approx. 88 g (0.2 lb.) | Approx. 88 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: -30 °C to 60 °C | Working temperature: -30 °C to 60 °C |
| Storage temperature | -30 °C to 70 °C | -30 °C to 70 °C |
| Luminosity | ||
| Humidity | 20% RH to 95% RH (no condensation) | 20% RH to 95% RH (no condensation) |
| General | ||
| Client software | MVS or third-party software meeting with USB3 Vision Protocol | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | Windows XP/7/10/11/12/64bits, Linux 32/64bits and MacOS 64bits | Windows XP/7/10/11/12/64bits, Linux 32, Linux 64bits and MacOS 64bits |
| Compatibility | ||
| Protocol | USB3 Vision, GenICam | USB3 Vision, GenICam |
| Certification | ||
| Standards | CE, RoHS, KC | CE, RoHS, KC |
